6 Foundation Types for Post-Frame Buildings
6 Foundation Types for Post-Frame Buildings
Updated for 2025
Why Your Foundation Matters
When building a post-frame structure—barn, workshop, or storage shed—your foundation determines how long it stands straight. Think of it like table legs: shaky legs mean nothing above stays true.
Today's options range from simple and inexpensive to engineered for generations. Here's a breakdown of six foundation types with their pros and cons.
1. Wood Posts in Ground — The Budget Method
How It Works
Dig a hole, drop in treated wood post, add concrete or backfill. Simple and cheap, but wood in damp soil eventually rots—typically 25-40 years, sometimes just 10.
Pros
- Lowest upfront cost
- Fast, familiar installation
- Minimal materials required
Cons
- High rot potential
- Shifting and heaving over time
- Lifespan depends on soil moisture
2. Concrete Piers — Strong, But Heavy
Concrete piers elevate posts above soil using brackets, keeping wood dry. A solid improvement over buried wood, but piers are heavy, making installation difficult and transportation expensive. Most aren't engineered for uplift without extra accessories.
Pros
- Wood stays above grade
- Durable concrete support
- Mid-range cost
Cons
- Heavy and cumbersome
- Extra costs for uplift resistance
- High transportation costs
3. Cast-In-Place Concrete Pilings
The Process
Concrete footings poured on-site, formed exactly where each post goes. When done well, provides great strength with minimal settling.
Advantages
Very durable with wide footings that reduce settling. Strong long-term performance for serious builds.
Drawbacks
More expensive with extra labor for forming and rebar. Weather delays can slow installation significantly.
4. Screw Pile Foundations
Screw piles (helical piles) twist deep into ground using machinery. Anchoring below frost line provides exceptional stability, resisting uplift and settling—ideal for weak or unpredictable soils.
Pros
Stable when installed correctly, great for challenging soils, long lifespan
Cons
One of pricier options, requires special equipment and trained installers, saddles can be off-center if not positioned correctly
5. Foundation Walls — For Slopes & Heavy Loads
Foundation walls handle dual jobs: supporting structure and holding back soil. Perfect for sloped sites and buildings expecting heavy machinery or traffic inside.
Benefits:
- Perfect for sloped sites
- No settling when built correctly
- Durable interior base
Drawbacks:
- Most expensive foundation choice
- More work than needed on flat sites
- Requires additional framing adjustments

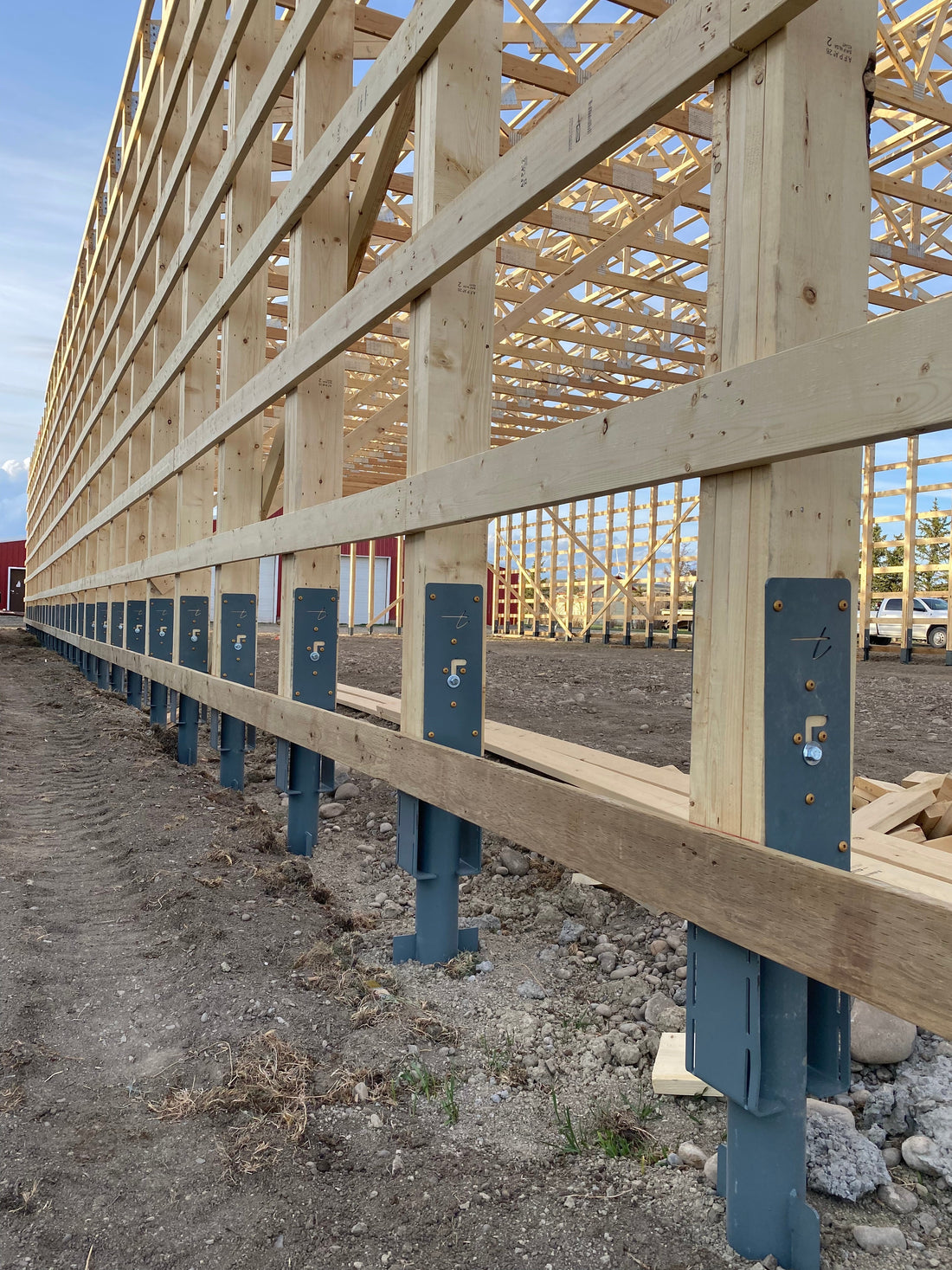

6. True Columns — The Modern Upgrade
The newest, fastest-growing option: pre-engineered steel foundation columns designed specifically for post-frame construction, avoiding every issue with buried wood.
Key Features:
- Load-Rated Foundation: Sits on composite footing pad or concrete disc
- Uplift Protection: Welded uplift plate locks into compacted aggregate
- Above-Grade Posts: Wood post stays completely above ground
- Long-Term Stability: Resists frost heave, shifting, and foundation movement
Key Benefits
- No wood buried in soil
- Strong resistance to frost and shifting
- Lightweight (about 90 lbs) and easy to install
- Engineer-stamped for code compliance
- Designed to last for generations
- Includes E-Z Stand Wall System and pre-cut grade-board slots
Considerations
- Higher cost than wood-in-ground
- Requires footing pads and proper compaction
- Still new in some regions
Choosing the Right Foundation
The best foundation depends on your long-term goals:
- Tight Budget? Wood posts in ground work but won't last as long
- Building on Slope? Foundation walls may be the best fit
- Want 40-80 Years? True Columns offer strength, stability, and longevity
Your foundation keeps the whole structure standing tall. Choosing the right system today saves thousands in repairs later—and ensures your building stays straight for years to come.
